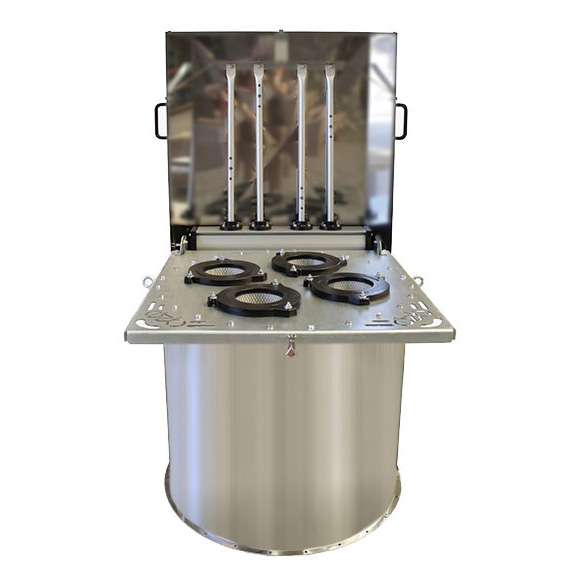

AIRFILL brand dust collectors provide a filtering area between 6m² to 36m² and are produced with body diameters of 400mm, 600mm, 800mm.
AIRFILL dust collectors comprises of;
· Jet-pulse cleaning system
· Stainless steel body and weather protection cover
· Cartridge type dust collector element
· Easy-to-reach external control panel
· Silo mounting flange as standard.
In addition;
· Stainless steel seal frame
· Stainless steel silo flanges,
· 0,75kW to 2,2kW fan on dust collector
· Hopper units and similar options are available.
Fan applications are used for directing the dust in the air towards the dust collector and holding the dust on the dust collector element during this passage and discharging clean air into the atmosphere.
Fans can be used either on top of the dust collector or on the side with a frame. In both applications, if the fan aspiration is too high, it is possible to decrease the flow (filtering speed) by closing the fan outlet.
